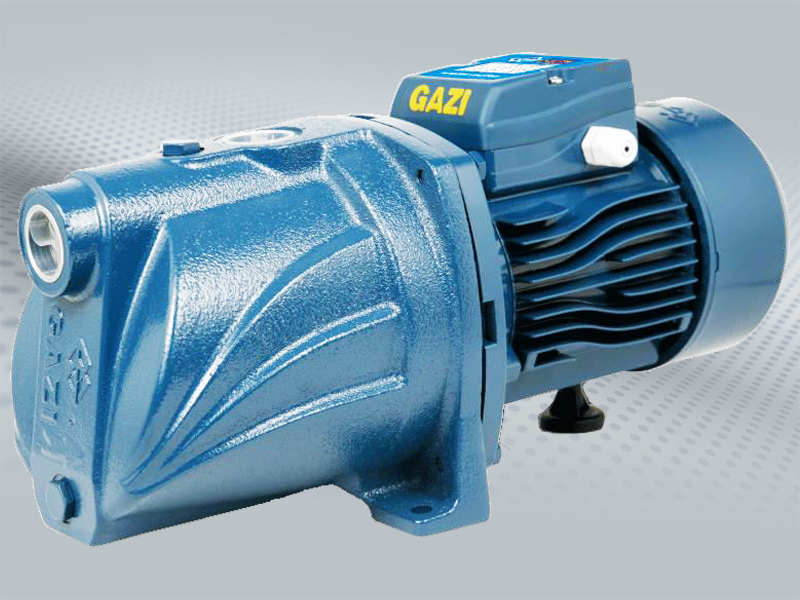

USES - These self-priming ejector type pumps with BRASS IMPELLER are suitable to handle clean or slightly cloudy, non-corrosive water not exceeding 50° C. temperature. Particularly suitable as shallow well pumps in areas where the well level is subject to seasonal changes. They can suck from a maXImum depth of 9 metres and prime well even in presence of water with gas bubbles. It is recommended to install a foot valve or gate valve in suction inlet.
PUMP SIDE - Cast-iron pump body and bracket, BRASS IMPELLER, stainless steel shalt, high quality mechanical seal.
ELECTRIC MOTOR - Heavy duty, continuous service, induction motor built to IEC 2-3 issue 1-1974 ref. 355 regulations. Built-in overload motor protector for Single phase version. Protection according to IP44 Standards. Size according to UNEL-MEC speafications.
PRODUCTION STANDARDS - The pump side is In Cast-iron and Is built to ISO 2548 regulations. The motor to IEC (International Electrotechnical Commission) specifications.
QUALITY CONTROL - All our pumps are individually factory tested according to UNI 6871-71P cat Ill Standards.
VOLTAGE -
Slngle phase: 180V - 220V
Three phase: 380V - 440V
Maximum allowable deviation from the rated voltage ±5%
(Other voltages available on demand).
FREQUENCY - 50 Hz.
WARRANTY PERIOD - 24 months.
